With the AIRENCE-USB ON-AIR mixer you can own a modern, split version type of radio production mixer. A smart mixer with an integrated USB based control section. Built with well proven low noise circuitry, this console is the reliable workhorse for the self-op production D.J. Built in Telephone Hybrids (2x), 4 channels USB and 4 Mic inputs. Ideal for streaming to the web and sending and accepting 4 stereo channels from your Play-out software.

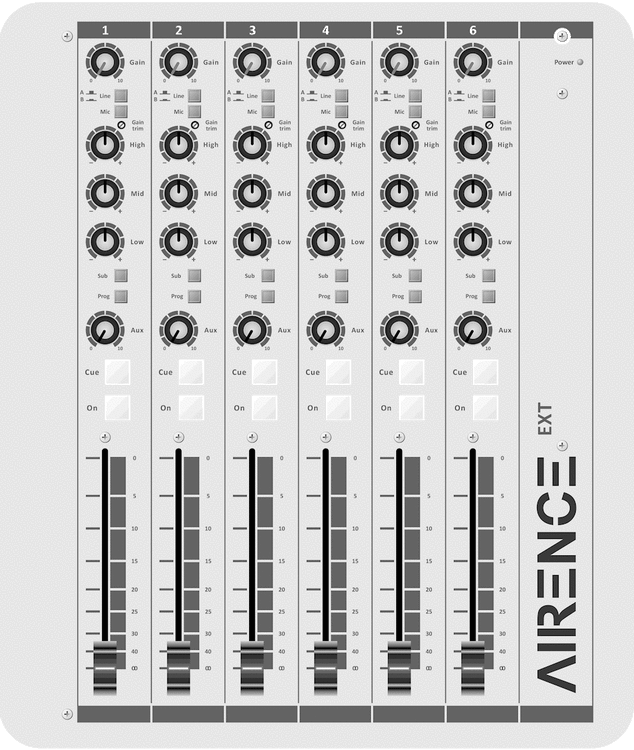

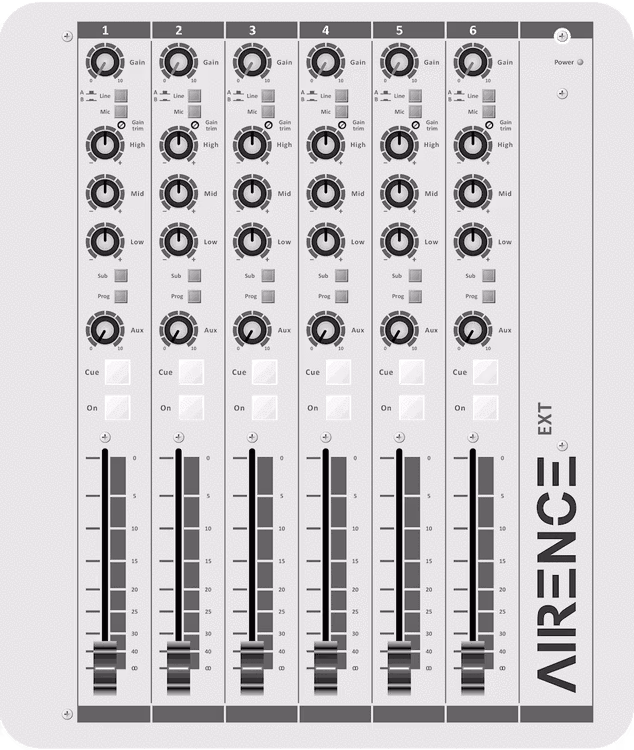

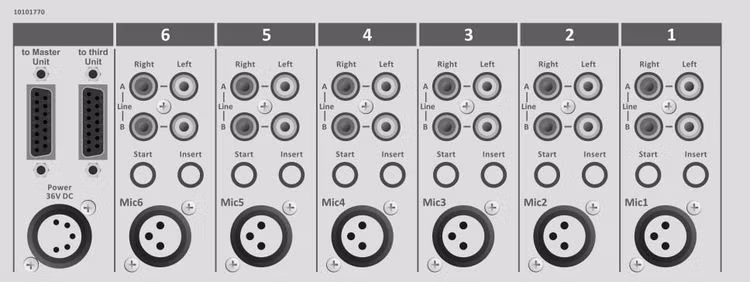

A heavy duty (19" rack) RF shielded chassis, that can be used as a drop through in your furniture, houses all the vertically mounted input modules. Extension units with six triple input channels with high end quality Mic inputs on XLR and two stereo line level inputs on Cinch (RCA) connectors can be connected to the main unit. The result is a modern split drop through 12 (or 18/24) fader radio console.
MIC, LINE, USB, VoIP AND TELEPHONE IN-OUTPUTS
This brand new AIRENCE-USB model has 4 balanced mic inputs (+48 phantom is standard) with inserts for signal processors, 6 stereo line inputs, 4x USB channels and 2x Telephone Hybrids (or VoIP channels). If you would like to call with VOIP with the TELCO modules we would advice to use theCISCO SPA112 as an interface between our 2 Telephone modules and the Internet.
But... you can also order the AIRENCE-USB main unit with built in VoIP channels om position 5 and/or 6 or even a combination of 1x Telco and 1x VoIP.
TELCO/VoIP Channel 5 and 6 have, apart from the stereo line input, also RJ-11 connectors to interface with an analogue telephone line and a common dial unit. And in case a VoIP module is installed one of the RJ-11 is replaced by 1x USB connector, the other RJ-11 has a clean-feed signal on pin 1 and 4.
Both analogue high quality built in Hybrids with R and C balance have direct Talk back to the Hybrid channels to make conversation with callers very easy. This is also possible when VoIP modules are built in. Also by simply pushing the Cue button, conversation between DJ and caller outside the broadcast is of course possible.
One physical USB connection interfaces 4 stereo audio channels from and to your PC plus all (programmable) remote controls on the right hand section of the mixer.
The illuminated front panel ON switch is electronically attached to the built in mechanical fader start enabling selection of a play-out start either by fader or via the ON switch.
Fader start generates in the Mic mode a Mic-on signaling to switch ON-Air lights. There is a 3 band Equalizer on channel 1-4 and on all 6 Triple input channels of the Extender Unit.
The stereo Aux send can be set pre or post fader. All high quality low noise mic inputs have low cut jumpers.
EXTENSIVE MASTER SECTION DESIGNED WITH RADIO IN MIND

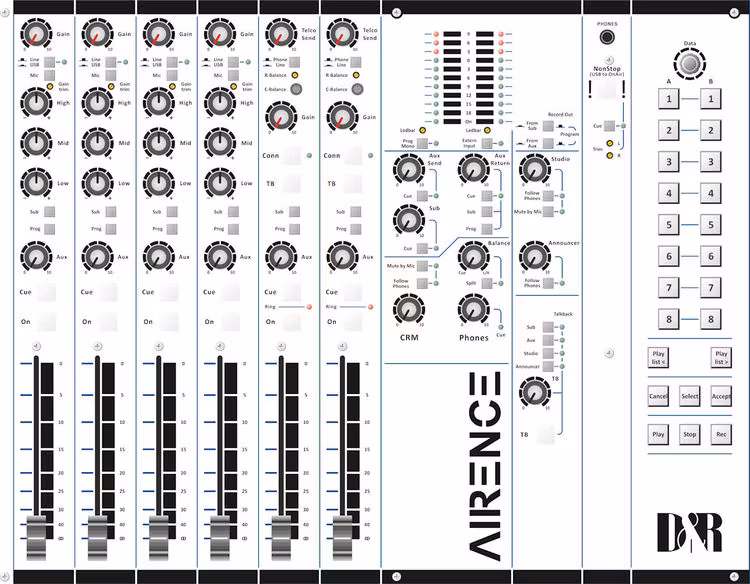

The AIRENCE-USB has all the master controls such as 100 mm stereo master faders, stereo Aux send. On the left you see a review of the AIRENCE mixer together with ourAircast music play-out system that can be controlled with the AIRENCE control section, the channel ON switches and the faderstarts.and return, monitor master with "follow phones" and a phones output with a split listen function.
There is a balance control to continuously adjust the volume between main output and stereo Cue signal. In addition, there is a special Radio On-air/production section featuring; Self-op switching (Mute Active) to automatically cut control room level when the D.J. mic is active.
A special Studio output that normally follows main output but can be switched so that the main output, or any cue signal that is selected, can be heard when in the "follow phones" mode. Also here is a Speaker Mute-Activation possible when presenters use loudspeakers in the studio room. You might have noticed that the channels have Sub and Program routing. It means that production (voice tracking) can be done on the sub output while ON-AIR.
