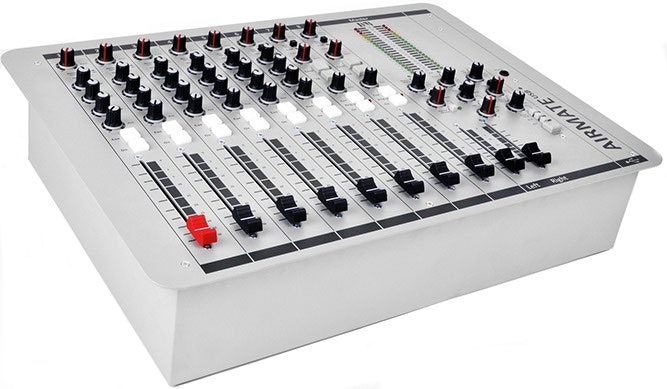

AIRMATE USB

INPUTS.

Mic inputs: bal, 2kOhm, XLR. Phantom: 48 volt.

Noise: - 122 dBr (A-weighted).

Sensitivity: - 70dB min, OdB max.

Insert: -10dBv in/out.

Line inputs: unbal., 10kOhm, Cinch.

Gain: range of 40dB.

Phono inputs: unbal. 47kOhm, 5 mV.

2 Track return: - 10 dBV at 10kOhm.

Aux returns: - 10 dBv at 10kOhm stereo

USB.

Fully compliant with USB 2.0 playback and record mode.

HID Functions: Volume/Mute

TELEPHONE HYBRIDS.

RJ-11 connectors for phone line/dialler

Mix Minus rejection @1kHz -60dB.

OUTPUTS.

Left/Right: + 4 dBu bal. XLR.

Monitor/Aux : + 4dBu unbal. on Cinch.

Cleanfeed/Announcer: + 4dBu, Jacks. Tape outp: -10dBv, unbal. Cinch.

Headphone: 16-600 Ohm, Jack.

Announcer: 16-600 Ohm, Jack.

EQUALIZER.

High: + / -12 dB at 12kHz shelving. Mid: + / -12dB at 1 kHz bell curve. Low: + / -12dB at 60 Hz bell curve.

OPTIONS:

AES/EBU digital stereo output and AES digital 2 track input plus existing  analog outputs on 2 jacks.

RIAA pre-amp on line input B for phono cartridges, 60881597

OVERALL

Frequency response: 10 - 60.000Hz.

Distortion: < 0.009% max at 1 kHz.

Start switch: reed relay.

Ledbars: 21 segment.

Power Consumption: 30VA
