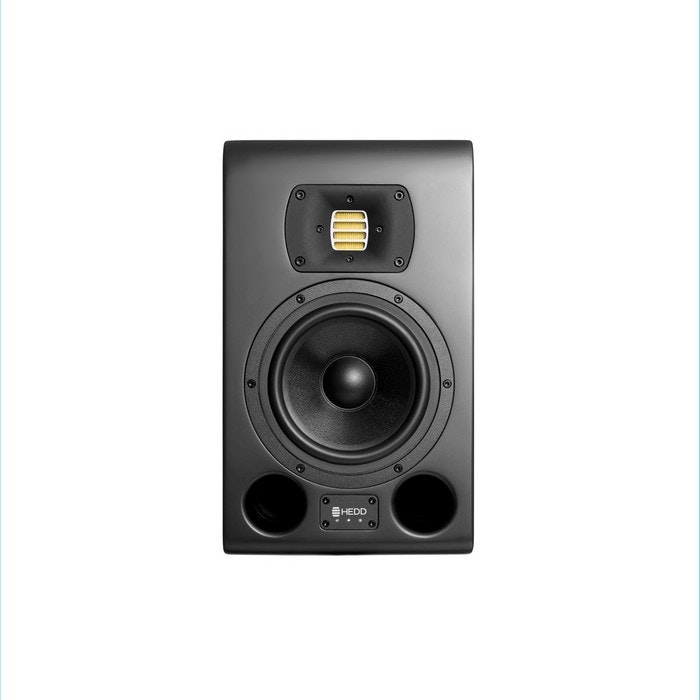

Hedd Audio TYPE 07 MK2 black

Priset avser 1 monitor

Description:

A New Generation of HEDD Studio Monitors and Subwoofers
Grown out of our highly praised Series ONE studio monitor line, HEDD is proud
to announce brand-new MK2 models and additional subwoofers.

INTRODUCING MK2 STUDIO MONITORS

HEDD LINEARISER® INTEGRATION
Implemented in the MK2 and subwoofer models is the HEDD Lineariser®, a phase linearisation tool that leads to perfect impulse responses and an audibly improved spatial reproduction.

»CoP« TECHNOLOGY (Closed or Ported)
Ever since there have been loudspeakers, there have been 2 different design...

• Woofer (honeycomb diagram): 7’’ (1.5’’ voice coil)
• Midrange (honeycomb design): –
• Tweeter: HEDD AMT
• Crossover frequencies (48 db/oct): 2 300 Hz
• Input analog / digital (AES): 2x / 1x XLR
• Input impedance (balanced): 22 kΩ
• Input gain: ± 12 dB
• Input sensitivity (A/D modulation): -10 /-4 / 0 / +4 dB
• Output: AES “through”: XLR
• HEDD Lineariser®, disengageable, delay: 10 ms
• Shelve filters high / low (.5 dB steps): ± 4 dB
• LF range (-3 dB): normal / extended / satellite: 38 / 30 / 80 Hz
• Desk filter: small / medium / large: 180 Hz (-1 / -2 / -4 dB)
• Frequency response (-3 dB): 38 - 40 000 Hz
• Maximum SPL (per pair): 116 dB
• Power amplifier / universal mains 110 - 240 V: 2x 100 W ICEpower
• AD/DA Conversion: 96 kHz / 32 Bit
• Cabinet with satin lacquer finish: black or white
• Dimensions (H x W x D): 370 x 220 x 300 mm
• Weight: 9.9 kg
• Warranty: 2 years
